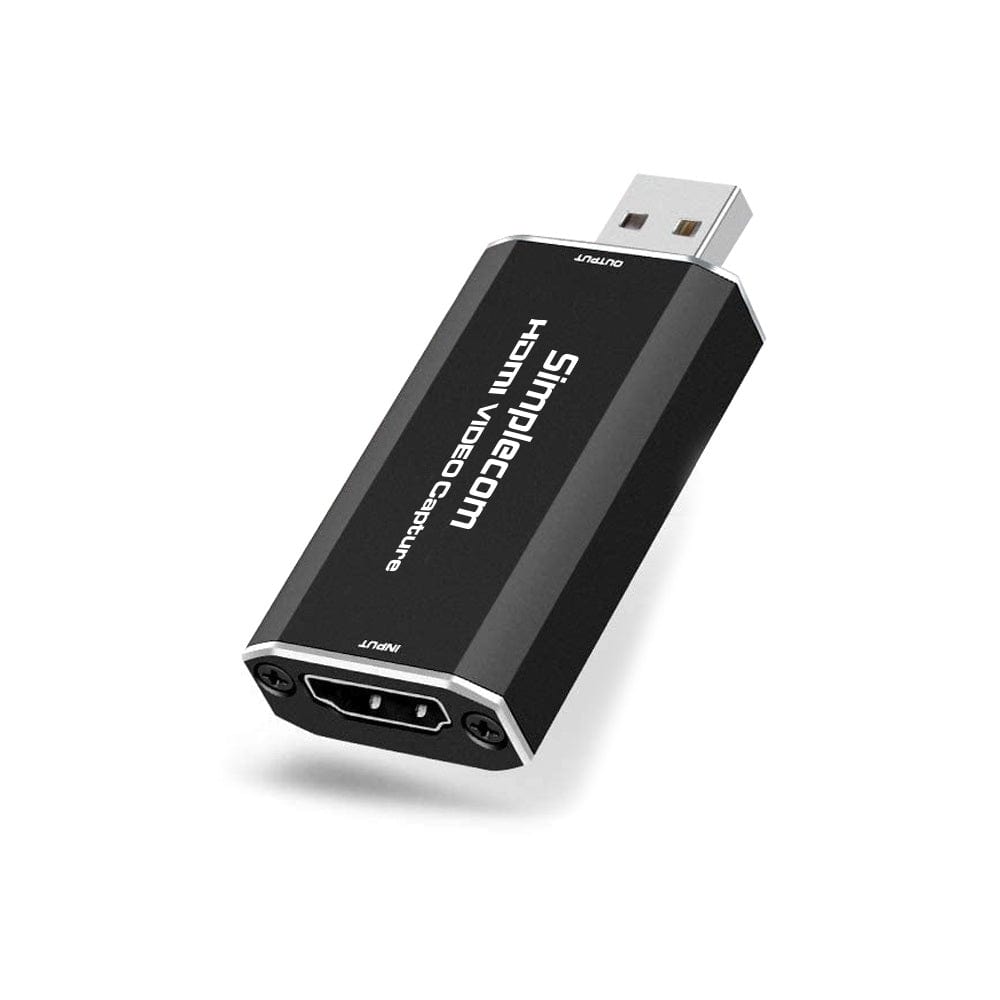

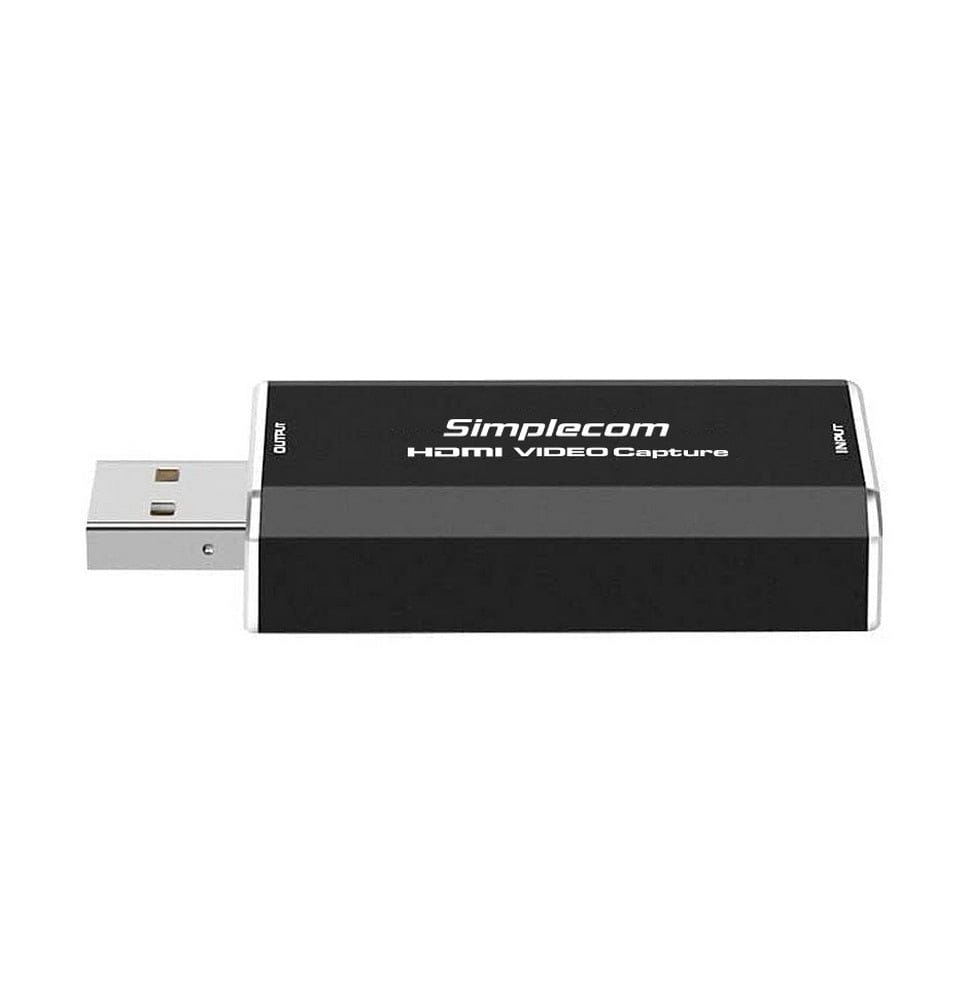

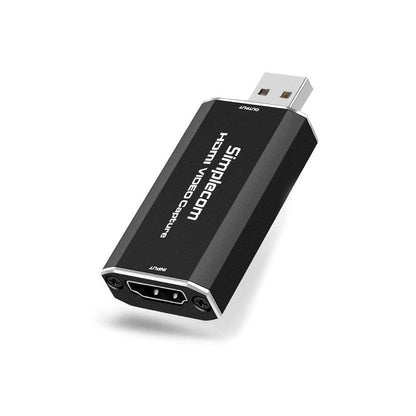

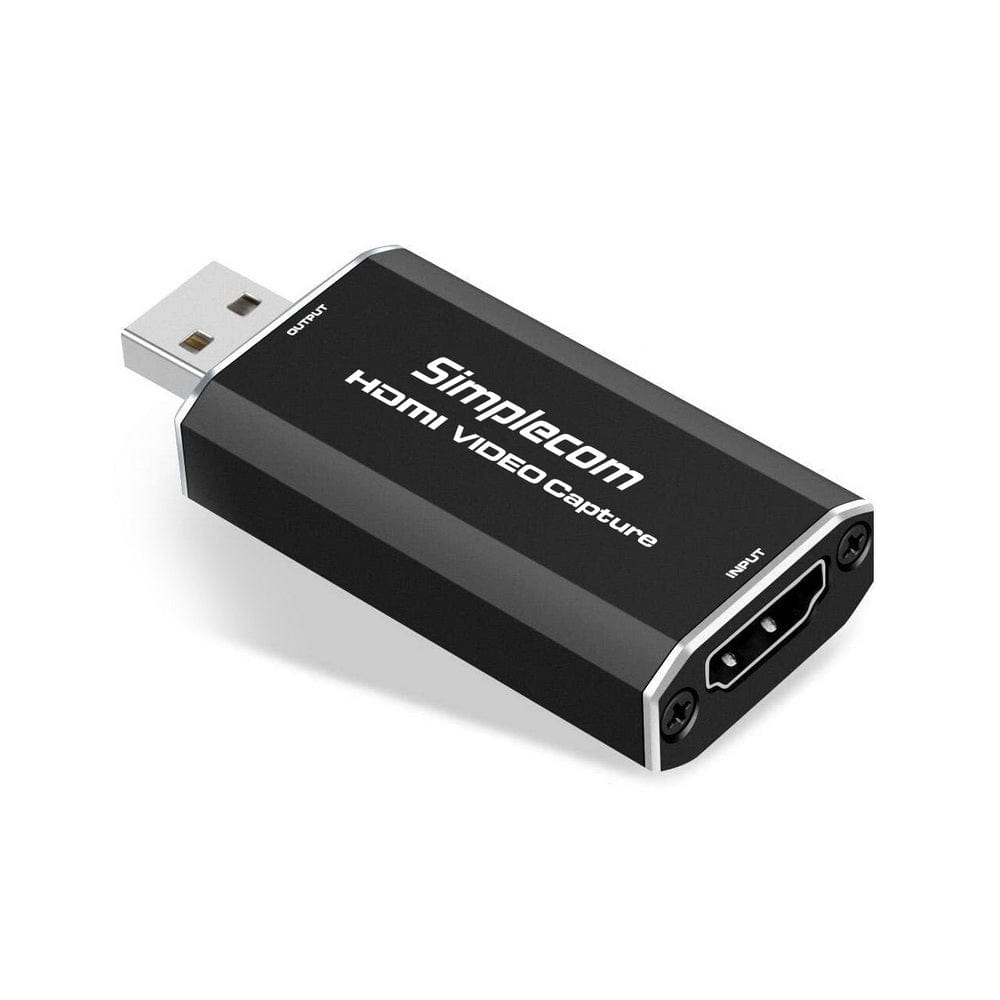

Simplecom DA315 HDMI to USB 2.0 Video Capture Card Full HD 1080p for Live Streaming Recording

  • $43.05
  • Save $2.90


DA315 is a compact HDMI to USB 2.0 video capture card, which allow you to capture HDMI video in Full HD 1080p. You can simply hook up your camera, camcorder, game console or other HDMI source to your PC or Mac for recording or streaming.

Compliant with UVC (USB Video Class) and UAC (USB Audio Class), it’s Plug in and Play and easy to use, no driver installation is required. Ideal for video recording, live streaming, video conference, and compatible with most mainstream capture software and live platforms.

Features

Easy Operation, Plug in and Play, No driver required

Support HDMI input resolution up to 4K

Support USB output resolution up to 1080p

Compliant with UVC (USB Video Class) and UAC (USB Audio Class)

No external power supply required, compact and portable

Compatible with most mainstream capture software, such as VLC, OBS, Amcap, etc.

Ideal for video recording, live streaming and video conference

Support Windows, Mac OS

Specifications

HDMI Input Resolution Support: up to 3840x2160@30Hz

USB Output Resolution Support: up to 1920x1080@30Hz

Video Input Format: 8 / 10 / 12-bit Deep Color

Video Output Mode: YUV / JPEG

Audio Format Support: L-PCM

Input HDMI Cable Support: < 15m (AWG26 Standard HDMI Cable)

Maximum Working Current: 0.4A / 5VDC

Operating temperature range: (-10 to + 55 Celsius)

Dimension (L x W x H): 64 x 28 x 13mm

Weight: 21.4g

Material: Alloy Aluminium

System Requirement

CPU: Quad Core Intel Core i5 or higher, Core i7 CPU is recommended

RAM: 4GB or higher

Graphic Card: NVIDIA GT630 or higher

Operating System: Windows 10 (64-bit), Mac OS X10.9 or higher

Important Note

Avoid USB hub or extension cable, connect to computer USB port directly

Low performance PC will cause lag when recording or steaming

Make sure select right audio input device if more than one audio source connected

YUY2 Video format is not supported

Certain Canon and Fujifilm camera models are not supported, e.g. EOS 6D, 6D Mark II, M10, Rebel SL1, Rebel T3i; Fujifilm X-A10, X-E2S, X-Pro2, X-T1

Windows 7 doesn’t support auto installation

Package Contents

1 x Simplecom DA315 HDMI to USB 2.0 Video Capture Card Full HD 1080p for Live Streaming Recording
