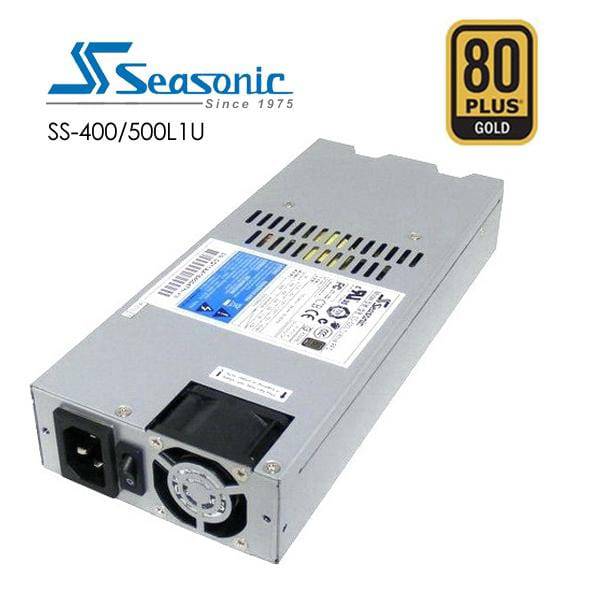

SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)
- WARRANTY & RETURN
- UNDELIVERABLE POSTCODES
Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC
- Specification compliance: Intel EPS 12V
- DC to DC converter design
- High efficiency and reliability
- Low THD
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- Model: SS-500L1U Active PFC
- DC Outputs:
(Remarks: * Combined +3.3VDC & +5V DC maximum power)
- Total Power: 500W
- Input Type: Full range
- Input frequency: 47/63 Hz
- Inrush current, cold start: 100A max.
- Efficiency, at normal input voltage: > 87%
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load @ 25℃ amb. : >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
- Satety: CUL, UV, CB
- EMC: CE, Fcc, C-Tick
- Dimension: L235 x W100 x H40mm
- Connectors: Customized modular cables
