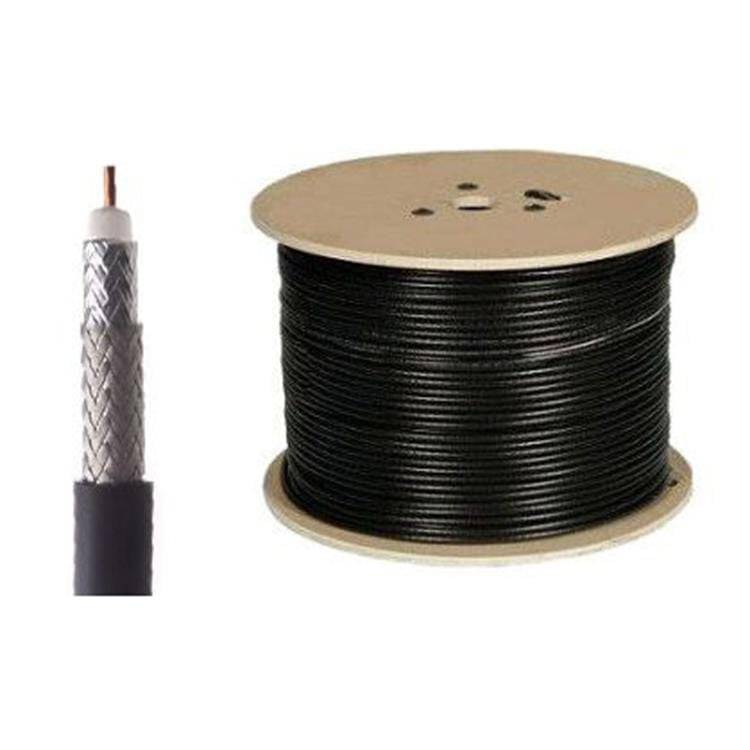

Times Microwave 100 Metre Reel Super Low Loss 50Ω Cable

Key Features

• Times Microwave LMR-400-DB communications cable

• LMR400-DB watertight 50Ω cabling

• Direct burial rated.

Usage

• The highest grade antenna cable recommended for any performance-critical, industrial, and harsh environmental applications

• Its exceptional performance is achieved with a much thicker diameter (10mm) and greatly reduced flexibility (25.4mm minimum bend diameter)

• LMR400-DB is a direct burial watertight cable suitable for a wide range of extreme environment applications such as underwater, saltwater, oil & gas, and military applications

• The addition of a waterproofing compound in and around the foil/braid ensures continuous reliable service should the jacket be inadvertently damaged during installation or in the future.

Specifications / Frequency

Electrical Specifications

• Resistance: 50Ω

• Capacitance: 78.4pF/m

• Signal Loss: 0.12dB/m @ 850MHz, 0.20dB/m @ 2100MHz

• Frequency Range: DC-16.2GHz

• The velocity of Propagation: 85%

• Nominal Delay: 3.92ns/m

• Voltage Withstand: 2500Volts DC

• Peak Power: 16kW

Mechanical Specifications

Weight/100m: 10kg
Minimum Bend Radius: 25.4mm
Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Conductor Material: Copper Clad Aluminium (CCA)
Conductor Diameter: 2.74mm
Insulating Material: Gas Injected Foamed Polyethylene
Outer Shield Material:
(1) Bonded Aluminium Polyester Tape 100% Coverage
(2) Tinned Copper Braid 86% Coverage
Outer Jacket Material: Non-halogenated PE Outer Diameter: 10.3mm

 Package Content:

1x 100m Coax Cable LMR400
